Gearings

The production programme at Albert Seitz GmbH includes the following gearings:

For our Service you alwas can choose between ...

  • CONTRACT:
    WE ORGANIZE THE COMPLETE HANDLING AND MANUFACTURING OF YOUR REQUESTED PRODUCT
  • TOP-TO-BOTTOM:
    YOU SUPPLY THE MATERIAL (OR PART) AND WE MANUFACTURE PER YOUR INSTRUCTIONS – COMPLETE OR PARTIAL.

Spur Gears

The production details about our spur gears and helical gears:

  • Module 0.5 to 30, from diameter 10 mm up to diameter 1300 mm
  • Involute profiles DIN 5480 and DIN 5482
  • Diametral pitch (DP) of gearings
  • Grooves DIN 5481
  • Spline shaft profiles DIN 5461 - 5465 and DIN 5471 - 5472, DIN ISO 14, diameter 320 mm, up to length 3150 mm

Capacity: 15 machines

For our Service you alwas can choose between ...

  • CONTRACT:
    WE ORGANIZE THE COMPLETE HANDLING AND MANUFACTURING OF YOUR REQUESTED PRODUCT
  • TOP-TO-BOTTOM:
    YOU SUPPLY THE MATERIAL (OR PART) AND WE MANUFACTURE PER YOUR INSTRUCTIONS – COMPLETE OR PARTIAL.

Gear Shaping

The production details about our gear shaping:

  • Module 0.5 up to 16, external Ø 10 mm up to 1300 mm,
    Internal Ø 10 mm up to 1600 mm
  • Gearing length 300 mm
  • Grooved face gears module 0.3 up to 3
  • Involute profiles DIN 5480 and DIN 5482
  • Grooves DIN 5481
  • Diametral pitch (DP) of gearings

Capacity: 20 machines

For our Service you alwas can choose between ...

  • CONTRACT:
    WE ORGANIZE THE COMPLETE HANDLING AND MANUFACTURING OF YOUR REQUESTED PRODUCT
  • TOP-TO-BOTTOM:
    YOU SUPPLY THE MATERIAL (OR PART) AND WE MANUFACTURE PER YOUR INSTRUCTIONS – COMPLETE OR PARTIAL.

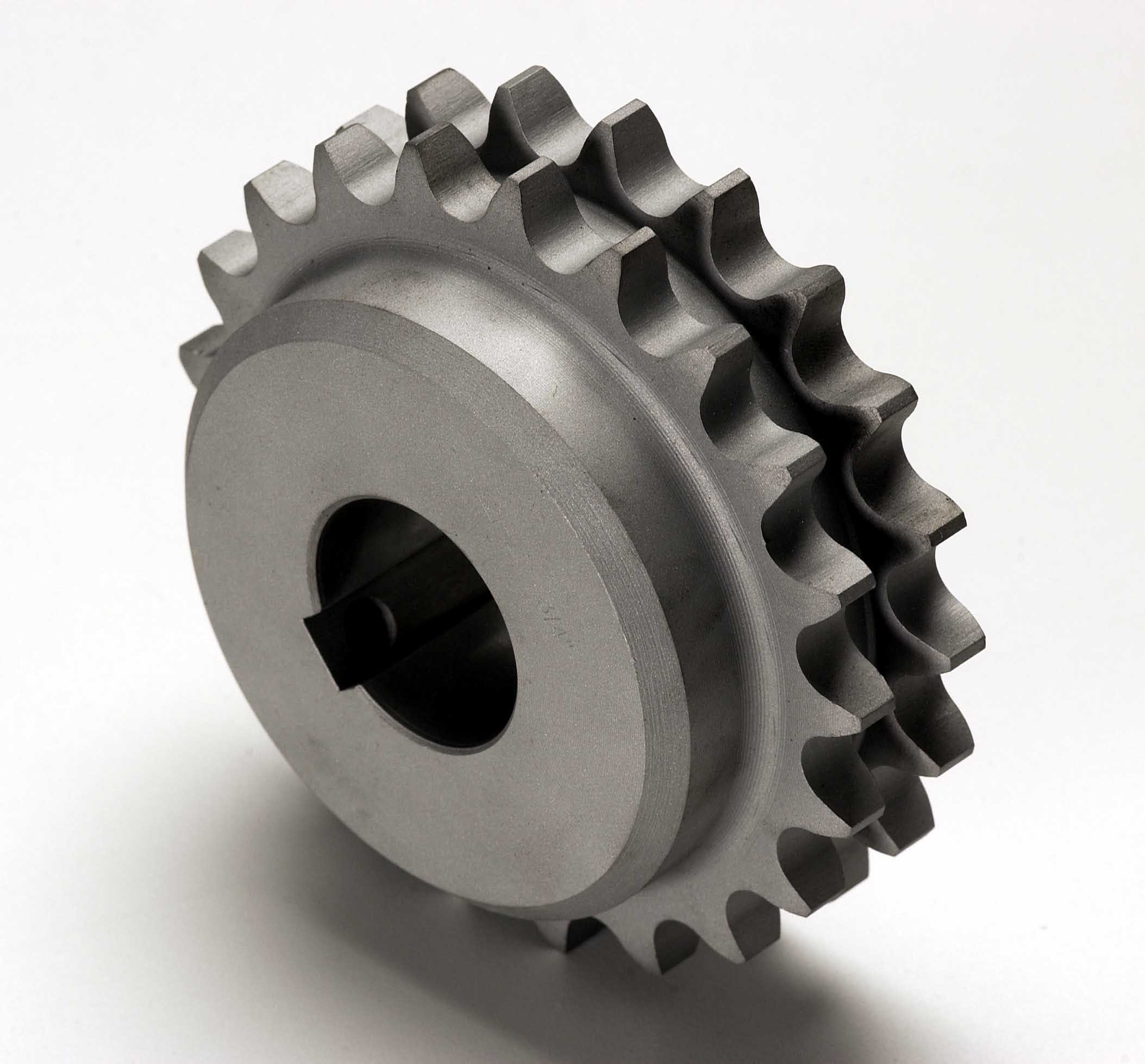

Sprockets

The production details about our sprockets:

  • in inch (1/4” to 2”) and millimetre division (5 to 50.8)
  • Ø 10 mm up to Ø 1300 mm

Capacity: 8 machines

For our Service you alwas can choose between ...

  • CONTRACT:
    WE ORGANIZE THE COMPLETE HANDLING AND MANUFACTURING OF YOUR REQUESTED PRODUCT
  • TOP-TO-BOTTOM:
    YOU SUPPLY THE MATERIAL (OR PART) AND WE MANUFACTURE PER YOUR INSTRUCTIONS – COMPLETE OR PARTIAL.

Worms

The production details about our worms:

  • spinning, milling and grinding of worm gear flanks
  • Modul 0,8 up to 10

Capacity: 2 machines

For our Service you alwas can choose between ...

  • CONTRACT:
    WE ORGANIZE THE COMPLETE HANDLING AND MANUFACTURING OF YOUR REQUESTED PRODUCT
  • TOP-TO-BOTTOM:
    YOU SUPPLY THE MATERIAL (OR PART) AND WE MANUFACTURE PER YOUR INSTRUCTIONS – COMPLETE OR PARTIAL.

Worm gears

The production details about our worm gears:

  • Modul 0,8 up to 20, from Ø 10 mm up to Ø 1250 mm

Capacity: 5 machines

For our Service you alwas can choose between ...

  • CONTRACT:
    WE ORGANIZE THE COMPLETE HANDLING AND MANUFACTURING OF YOUR REQUESTED PRODUCT
  • TOP-TO-BOTTOM:
    YOU SUPPLY THE MATERIAL (OR PART) AND WE MANUFACTURE PER YOUR INSTRUCTIONS – COMPLETE OR PARTIAL.

Gear racks

The production details about our gear racks:

  • up to modul 8 and2000 mm length

Capacity: 2 machines

For our Service you alwas can choose between ...

  • CONTRACT:
    WE ORGANIZE THE COMPLETE HANDLING AND MANUFACTURING OF YOUR REQUESTED PRODUCT
  • TOP-TO-BOTTOM:
    YOU SUPPLY THE MATERIAL (OR PART) AND WE MANUFACTURE PER YOUR INSTRUCTIONS – COMPLETE OR PARTIAL.
